We’re going to take a look at the Ubiswitch as well for our application. Would you be able to help us identify the high power-consumption components on the module and the baseboard and let us know what the power dissipation is for each? This will help us design our heatsinking around the board properly.
On the module…
A: 4.6 Watts
B: 0.69 Watts
C: 0.14 Watts
D: 0.11 Watts

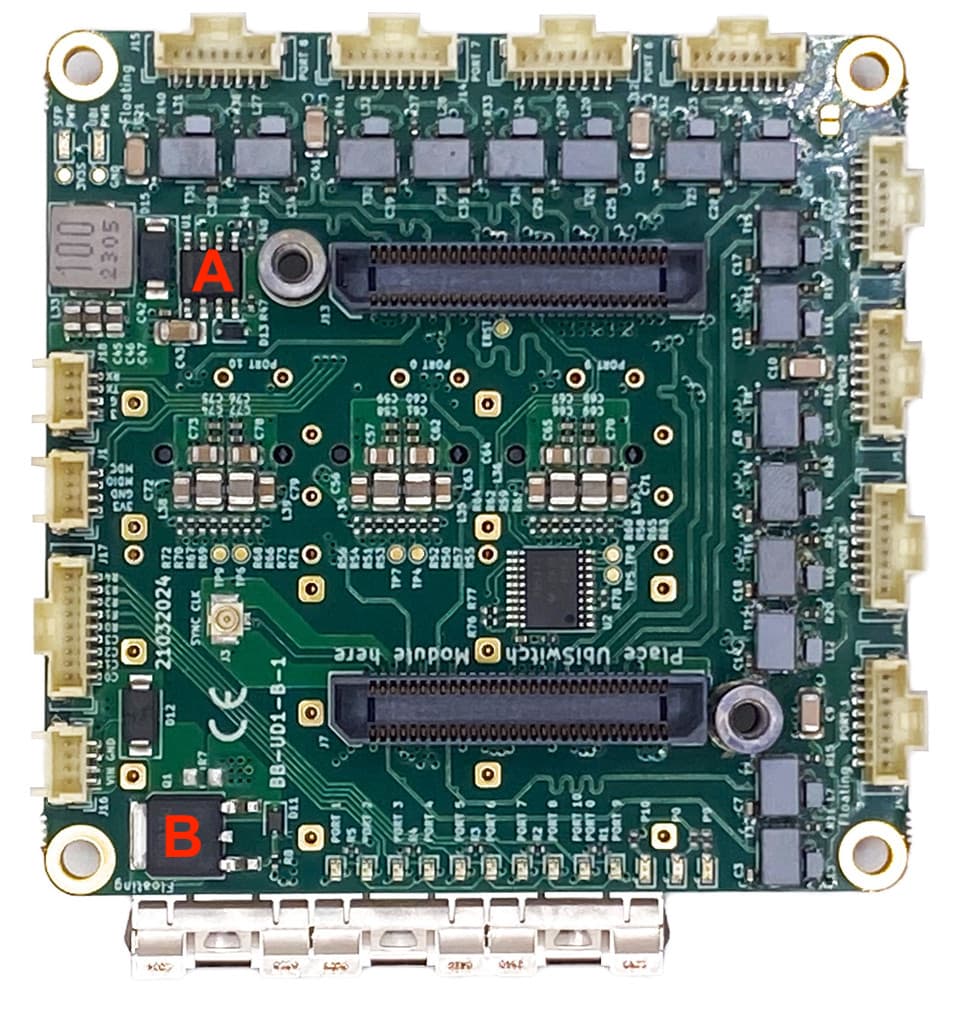

On the baseboard…
A:
No SFPs: 0W.
1 x SFP dissipating 3W total: 0.36W
2 x SFPs dissipating 6W total: 0.6W
3 x SFPs dissipating 9W total: 0.9W

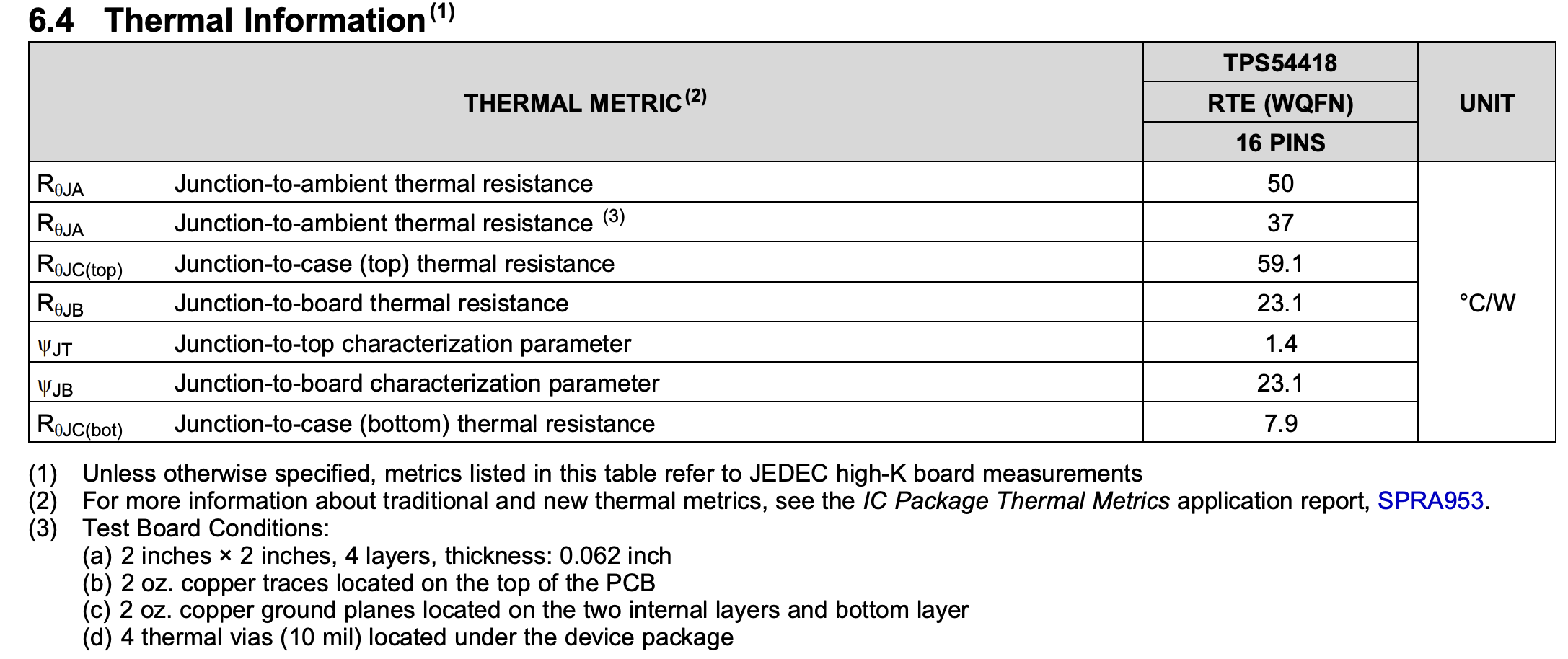

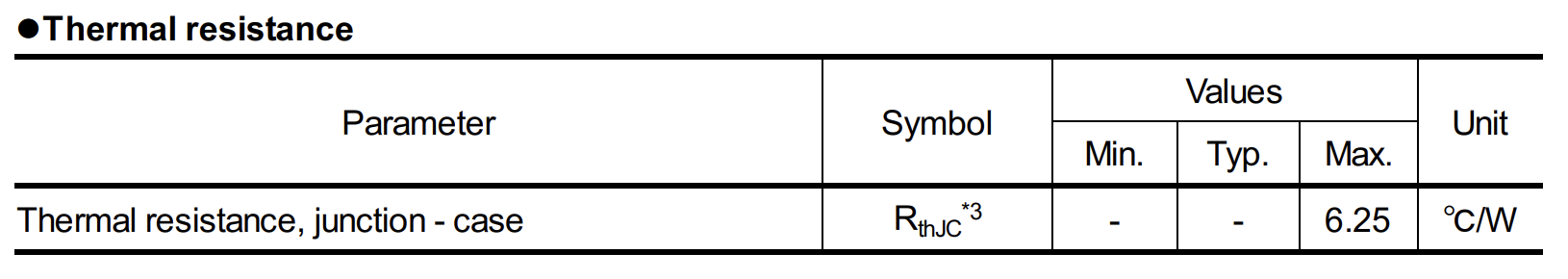

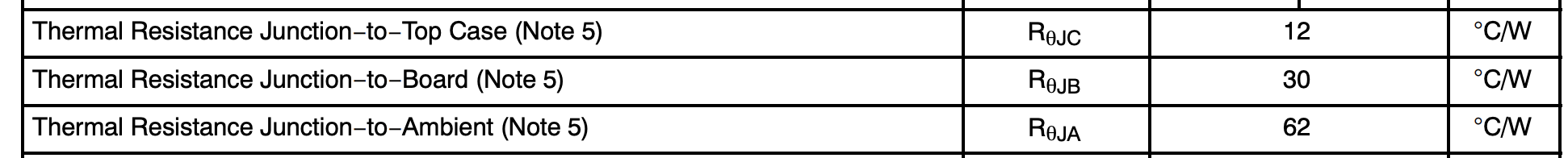

B: 1W
